Transistor Outline (TO) Packages
Discover the reliability and versatility of our TO packages, offering robust solutions for discrete semiconductor devices. The power-handling capabilities of TO-220, our TO packages provide a solid foundation for your electronic designs. With a focus on thermal efficiency and durability, these packages are designed to meet the demands of a wide range of applications.

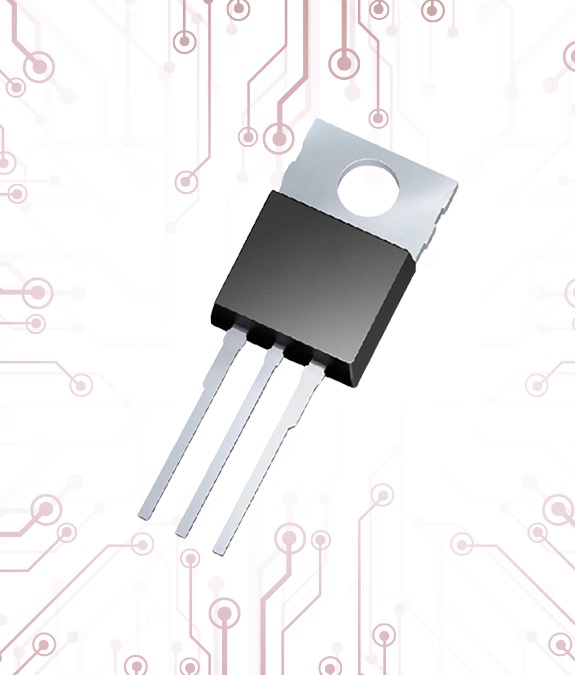

The TO-220 (Transistor Outline 220) package is a widely used and versatile through-hole package for power semiconductors, including transistors, voltage regulators, and power ICs. Here are several advantages associated with the TO-220 package:
Advantages of TO package
High Power Handling Capability
TO-220 packages are designed for high-power applications, making them suitable for power transistors, voltage regulators, and other semiconductor devices requiring efficient heat dissipation.
Effective Thermal Performance
The TO-220 package features a metal tab that serves as a heat sink, facilitating effective thermal dissipation. This is essential for power devices that generate significant heat during operation.
Ease of Mounting
The TO-220 package is a through-hole device, which means it can be easily mounted on a printed circuit board (PCB) using standard soldering techniques. This ease of mounting simplifies the assembly process, especially for hobbyists and small-scale production.
Robust Construction
TO-220 packages are typically robust and durable, providing mechanical strength and protection for the semiconductor device within. This durability makes them suitable for applications where the device may experience mechanical stress or vibration.
Standardized Pinout
The pinout configuration of the TO-220 package is standardized, making it easy for engineers and designers to use in various projects. This standardization enhances interoperability and simplifies the design process.
Versatility
TO-220 packages are versatile and can accommodate various types of power devices, including power transistors (such as MOSFETs and BJTs), voltage regulators, and power ICs. This versatility makes them widely used in power supply circuits and other power electronics applications.
Widespread Availability
Due to its popularity, the TO-220 package is readily available from multiple manufacturers. This availability provides designers with a broad range of options when selecting components for their circuits.
Cost-Effective
TO-220 packages are generally cost-effective to manufacture, contributing to their widespread use in a variety of electronic devices. The cost-effectiveness is beneficial for both manufacturers and end-users.
Standard Package Size
The TO-220 package has a standard size, allowing it to be easily integrated into existing designs or standardized circuits. This consistency simplifies the design process and makes it compatible with various layouts.
Effective Electrical Isolation
The metal tab of the TO-220 package often serves as a common electrical connection (collector or drain), providing effective electrical isolation from the other semiconductor components. This can simplify the circuit design by reducing the need for additional insulation.
